Clopidogrel Bisulfate
Click to View Image

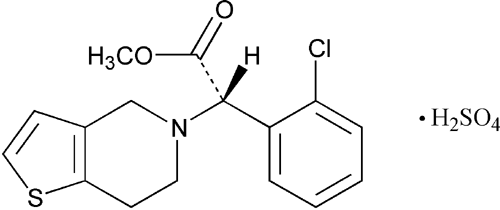

C16H16ClNO2S·H2SO4 419.90

Thieno[3,2-c]pyridine-5(4H)-acetic acid, -(2-chlorophenyl)-6,7-dihydro-, methyl ester, (S)-, sulfate (1:1).
Methyl (+)-(S)--(o-chlorophenyl)-6,7-dihydrothieno[3,2-c]pyridine-5(4H)-acetate, sulfate (1:1) [120202-66-6].
» Clopidogrel Bisulfate contains not less than 97.0 percent and not more than 101.5 percent of C16H16ClNO2S·H2SO4, calculated on the dried basis.
Packaging and storage— Preserve in well-closed containers, and store at controlled room temperature.
Identification—
A: Infrared Absorption 197K.
B: The retention time of the major peak in the chromatogram of the Assay preparation corresponds to that in the chromatogram of the Standard preparation, as obtained in the Assay.
C: It responds to the test for Sulfate 191.
Loss on drying 731 Dry it at 105 for 2 hours: it loses not more than 0.5% of its weight.
Residue on ignition 281: not more than 0.1%.
Related compounds—
Phosphate buffer, Mobile phase, Standard stock solution, System suitability solution, and Chromatographic system— Proceed as directed in the Assay.
Standard solution— Dissolve accurately weighed quantities of USP Clopidogrel Related Compound A RS, USP Clopidogrel Related Compound B RS, and USP Clopidogrel Related Compound C RS in methanol, and dilute with methanol to obtain a solution having concentrations of about 0.1, 0.4, and 0.3 mg per mL, respectively. Dilute this solution with Mobile phase, and mix to obtain a solution having final concentrations of about 10, 40, and 30 µg per mL, respectively.
Test solution— Transfer about 100 mg of Clopidogrel Bisulfate, accurately weighed, to a 200-mL volumetric flask, dissolve in and dilute with methanol to volume, and mix.
Procedure— Separately inject equal volumes (about 10 µL) of the Standard solution and the Test solution into the chromatograph, record the chromatograms, and measure the areas for all the peaks. Calculate the percentage of related compounds in the portion of Clopidogrel Bisulfate taken by the formula:
100(CS / CT)(rU / rS),
in which CS is the concentration, in mg per mL, of relevant USP Clopidogrel Related Compound RS in the Standard solution; CT is the concentration, in mg per mL, of Clopidogrel Bisulfate in the Test solution; rU is the peak response for clopidogrel related compound obtained from the Test solution; and rS is the peak response for relevant clopidogrel related compound obtained from the Standard solution: not more than 0.2% of clopidogrel related compound A is found; not more than 0.3% of clopidogrel related compound B is found; not more than 1.0% of clopidogrel related compound C is found; not more than 0.1% of any other impurity is found; and not more than 1.5% of total impurities is found.
Residual solvents 467: meets the requirements.
(Official January 1, 2007)
Assay—
Phosphate buffer— Dissolve 1.36 g of monobasic potassium phosphate in about 500 mL of water, and dilute with water to 1000 mL.
Mobile phase— Prepare a filtered and degassed mixture of Phosphate buffer and acetonitrile (75:25). Make adjustments if necessary (see System Suitability under Chromatography 621).
Standard stock solution— Transfer about 100 mg of USP Clopidogrel Bisulfate RS, accurately weighed, to a 100-mL volumetric flask. Dissolve in and dilute with methanol to volume, and mix.
Standard preparation— Dilute a suitable portion of Standard stock solution, accurately measured, with Mobile phase to obtain a solution having a known concentration of about 0.1 mg per mL.
System suitability solution— Dissolve an accurately weighed quantity of USP Clopidogrel Related Compound B RS in methanol, and mix with a suitable portion of Standard stock solution, to obtain concentrations of about 1.0 and 0.5 mg per mL, respectively. Dilute this solution with Mobile phase, and mix to obtain a solution having a final concentration of about 0.05 mg per mL of clopidogrel bisulfate and about 0.1 mg per mL of clopidogrel related compound B.
Assay preparation— Transfer about 100 mg of Clopidogrel Bisulfate, accurately weighed, to a 100-mL volumetric flask, dissolve in and dilute with methanol to volume, and mix. Pipet 5.0 mL of this solution to a 50-mL volumetric flask, dilute with Mobile phase to volume, and mix.
Chromatographic system (see Chromatography 621)— The liquid chromatograph is equipped with a 220-nm detector and a 4.6-mm × 15-cm column that contains packing L57 (see Chromatography 621). The flow rate is about 1.0 mL per minute. Chromatograph the System suitability solution, and record the peak responses as directed for Procedure: the relative retention times are about 0.8 and 1.2 for enantiomers of clopidogrel related compound B, respectively, and 1.0 for clopidogrel; and the resolution, R, between clopidogrel and the first enantiomer of clopidogrel related compound B is not less than 2.5. Chromatograph the Standard preparation: the relative standard deviation for replicate injections determined from clopidogrel bisulfate is not more than 1.0%.
Procedure— Separately inject equal volumes (about 10 µL) of the Standard preparation and the Assay preparation into the chromatograph, record the chromatograms, and measure the areas for all the peaks. Calculate the quantity, in mg, of C16H16ClNO2S·H2SO4 in the portion of Clopidogrel taken by the formula:
1000C(rU / rS),
in which C is the concentration, in mg per mL, of USP Clopidogrel Bisulfate RS in the Standard preparation; and rU and rS are the peak responses obtained from the Assay preparation and the Standard preparation, respectively.
Auxiliary Information— Staff Liaison : Andrzej Wilk, Ph.D., Senior Scientific Associate
Expert Committee : (MDCV05) Monograph Development-Cardiovascular
USP29–NF24 Page 562
Pharmacopeial Forum : Volume No. 29(5) Page 1445
